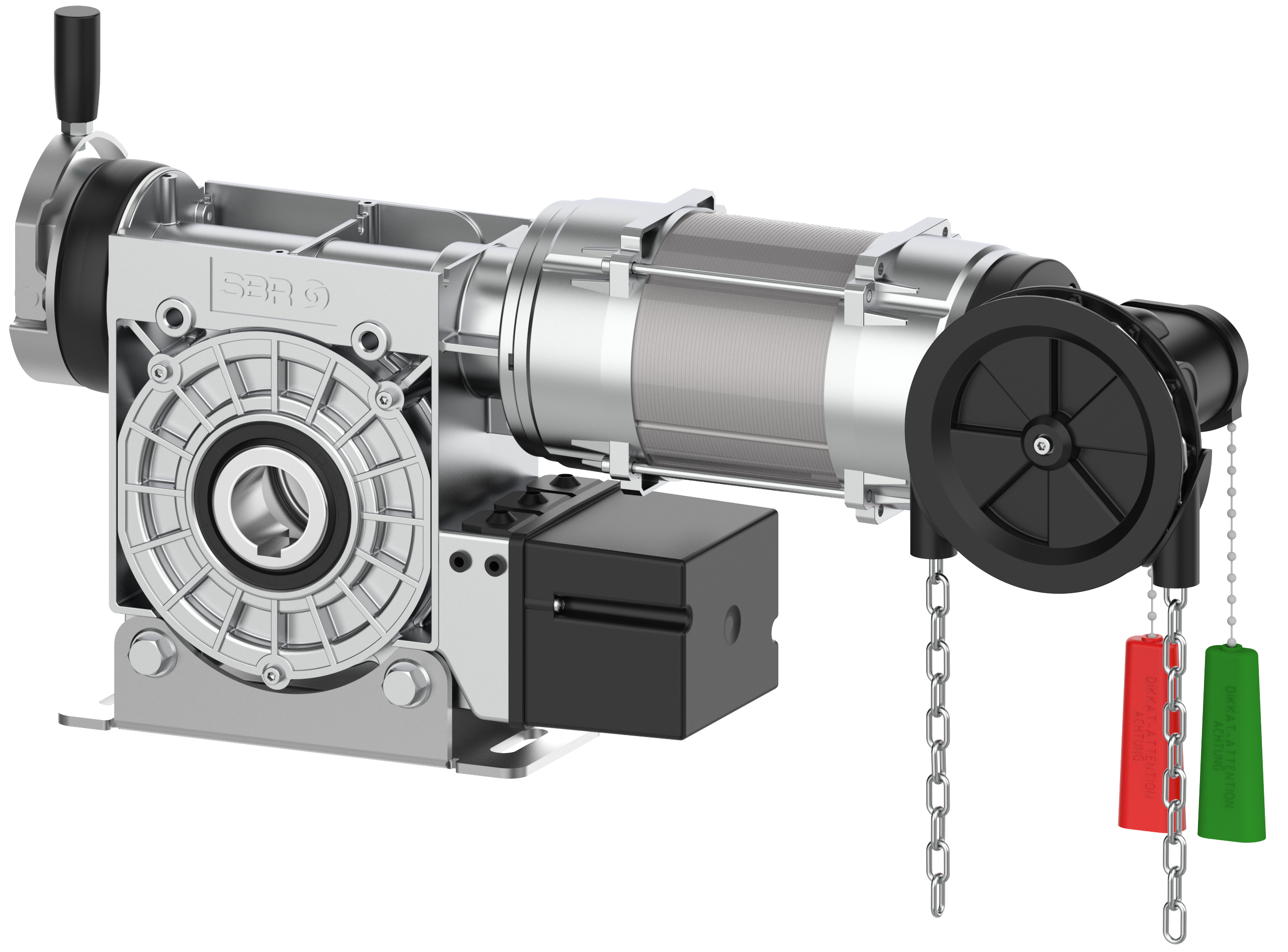

PRODUCTS SBR Industrial Doors SECTIONAL DOOR DRIVES SBR Industrial Doors NON BALANCED SECTIONAL DOORS DRIVES SBR Industrial Doors DS-085-0350-024-D31.7-E20-1.10KW-1N230-C2-R2 NON-BALANCED SECTIONAL DOOR MOTOR
SBR Industrial Doors
SBR Industrial Doors
SBR Industrial Doors
SBR Industrial Doors
TECHNICAL DATA
Part No SBR 5024180803
Product Code DS-085-0350-024-D31.7-E20-1.10KW-1N230-C2-R2
Output Torque Nm 350
Output Speed rpm 24
Output Shaft mm 31,75
Motor Power kW 1,10
Operating Voltage V 3N~400
Operating Frequency Hz 50
Operating Current A 5,6/3,3
Max. Cycles Per Hour h 11
Limit Switch Range rpm 20
Duty Types ED S3-%60
IP Protection Class IP IP54
Min Operating Temperature °C -20
Max Operating Temperature °C +40(60)
Working Noise Level dB(A) < 70
