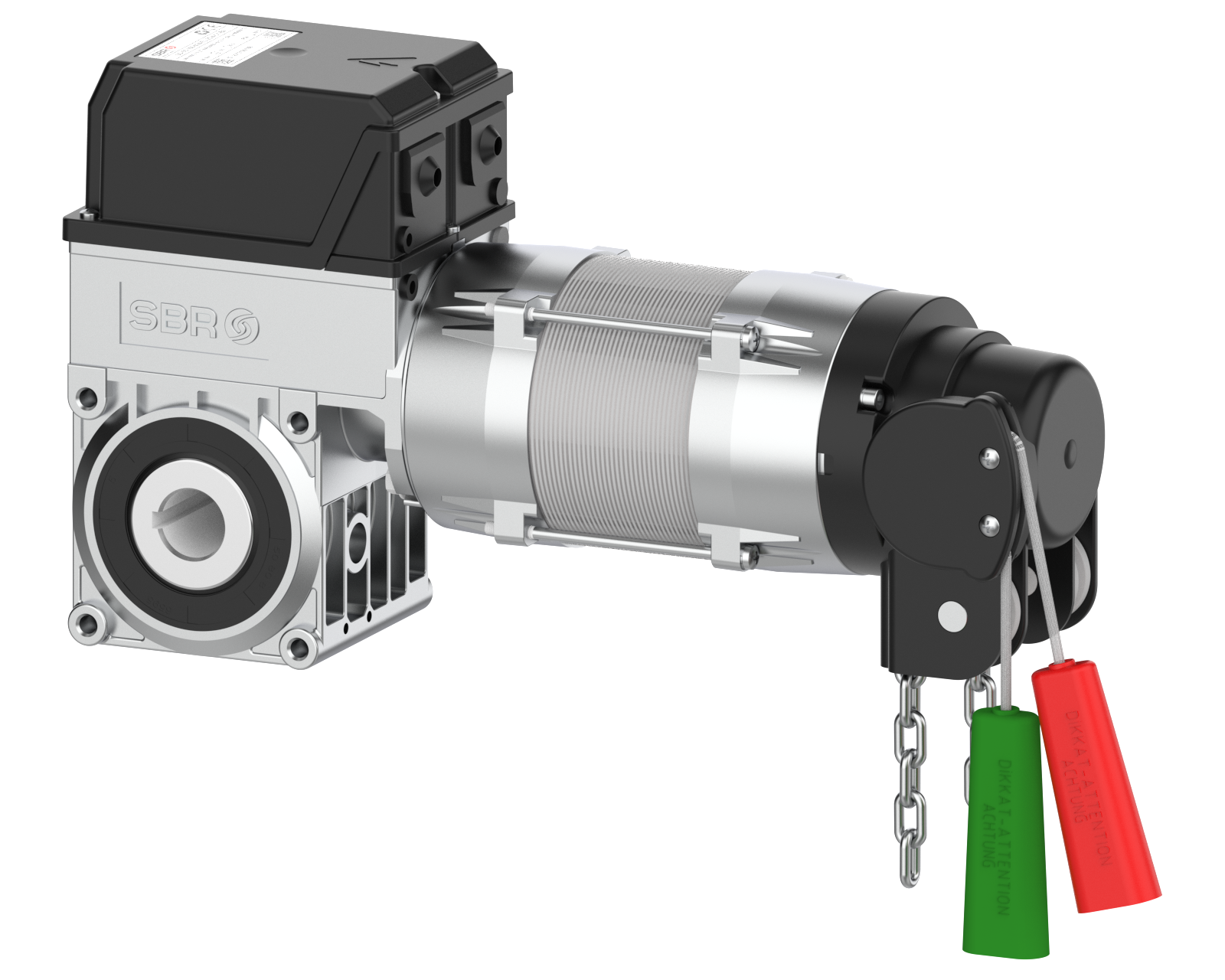

| TECHNICAL DATA | ||
| Part No SBR | 5010206071211 | |
| Product Code | SD-050-0100-030-D25.4-E20-0.55KW-3N400-C1-B0 SEKSİ | |
| Output Torque | Nm | 100 |
| Output Speed | rpm | 30 |
| Output Shaft | mm | 25,4 |
| Motor Power | kW | 0,55 |
| Operating Voltage | V | 3N~400 |
| Operating Frequency | Hz | 50 |
| Operating Current | A | 2,7/1,6 |
| Max. Cycles Per Hour | h | 14 |
| Limit Switch Range | rpm | 20 |
| Duty Types | ED | S3-%60 |
| IP Protection Class | IP | IP54 |
| Min Operating Temperature | °C | -20 |
| Max Operating Temperature | °C | +40(60) |
| Working Noise Level | dB(A) | < 70 |
| Door Size | m² | 30 |
